Bendix | #K132352

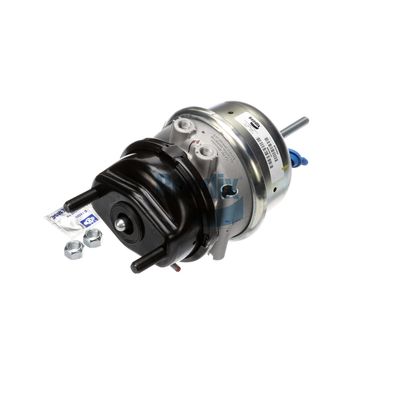

Spring Brake (Disc)
| Country of Origin (Primary) | Mexico |
|---|---|
| Life Cycle Status Code | Available to Order |
| Market Indicator | Aftermarket New |
|---|---|
| Maximum Operating Temperature | 176 AdegF (80 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Cautionary Note(s) | All vent holes must be open |
| Chamber Style | Double Diaphragm |
| Chamber Type / Size | T18/24 |
| Clamp Angle | 90Adeg |
| Mounting Stud Length | 1.72 IN (43.7 MM) |
| Parking Port (12) | 3/8-18 NPTF |
| Port Angle | 270Adeg |
| Push Rod Thread / Style | Spherical End |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port (11) | 3/8-18 NPTF |
| Stroke | 2.25 IN (57.2 MM) |
| Stud Spacing | 4.75 IN (120.7 MM) |
| Stud Thread Size | M16 x 1.5-6g |
| Parking Chamber Sealed | No |
| Push Rod Length [MM] | 15 Millimeter |
| Service Chamber Vent Holes | All Open |
Product Details
Spring Brake (Disc)
