Bendix | #800833

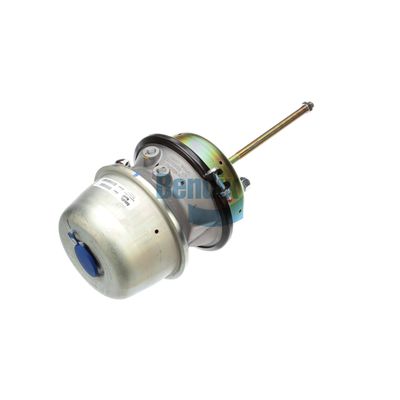

Spring Brake (S-Cam)
| Country of Origin (Primary) | Mexico |
|---|---|
| Life Cycle Status Code | Available to Order |
| Market Indicator | Aftermarket New |
|---|---|
| Maximum Operating Temperature | 175 AdegF (79 AdegC) |
| Minimum Operating Temperature | -45 AdegF (-43 AdegC) |
| Brand | SB-4 |
| Cautionary Note(s) | Do not disassemble while park side is caged under pressure |
| Chamber Style | Double Diaphragm |
| Chamber Type / Size | T36/36 |
| Clamp Angle | 45Adeg |
| Clevis / Yoke Arm Bushing Pin Diameter | Not applicable to this part |
| Clevis / Yoke Arm Link Pin Diameter | Not applicable to this part |
| Clevis / Yoke Pin Spacing | Not applicable to this part |
| Clevis / Yoke Style | Not Included |
| Mounting Stud Length | 1.50 IN (38.1 MM) |
| Parking Port (12) | 3/8-18 NPTF |
| Port Angle | 270Adeg |
| Push Rod Length (to Yoke Pin Center when Applicable) [IN] | 8.30 Inch |
| Push Rod Thread / Style | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Double Clamp Band |
| Service Port (11) | 3/8-18 NPTF |
| Stroke | 3.00 IN (76 MM) |
| Stud Spacing | 4.75 IN (120.7 MM) |
| Stud Thread Size | 5/8-11 UNC-2A |
Product Details
Spring Brake (S-Cam)
